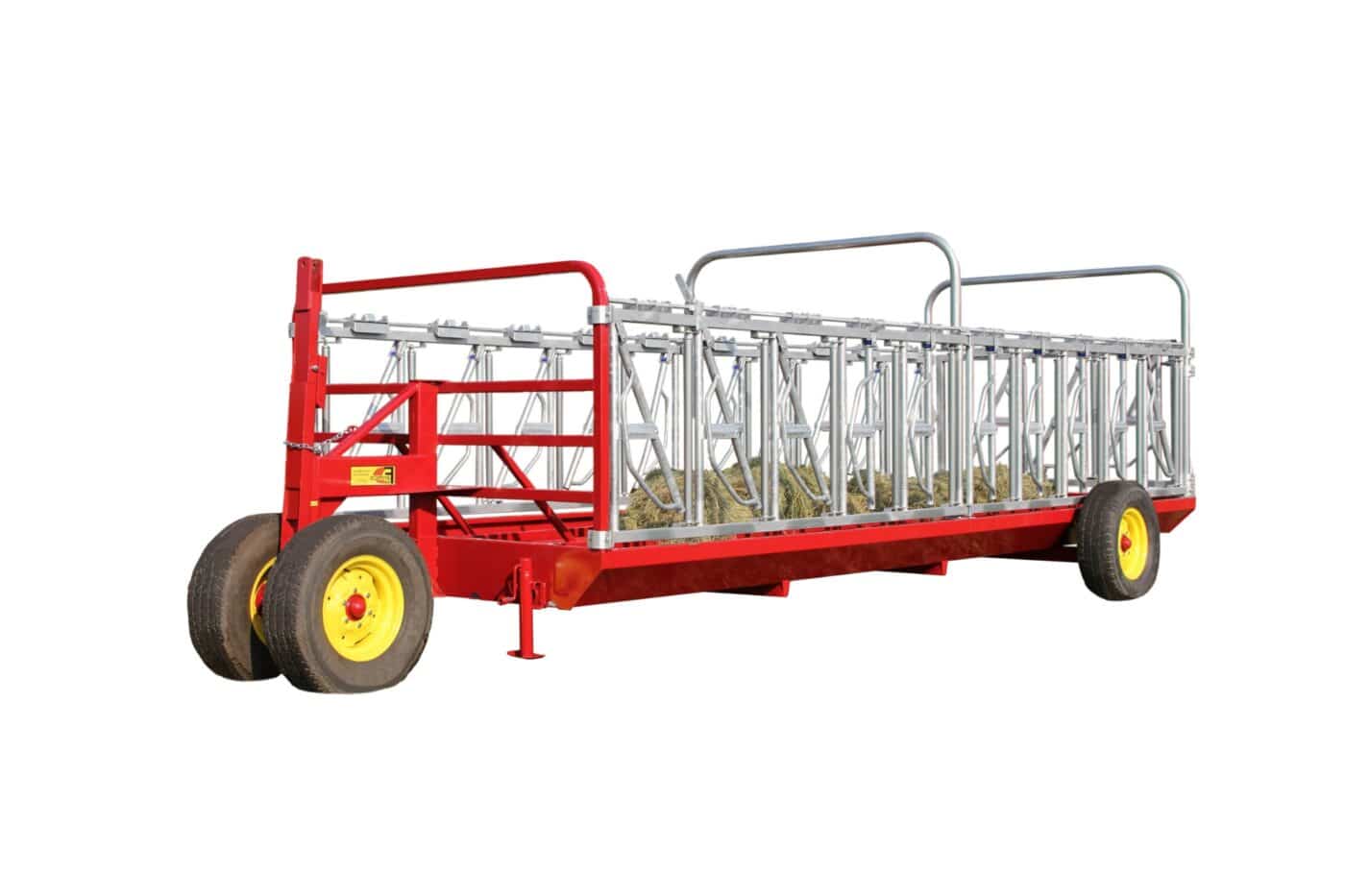

HL Series4-Wheeled Headlock Feeder
A cattle headlock feeder on wheels, up to 7’ wide, designed to feed large hay bales, chopped feeds, and TMR.
Catching cattle is a problem almost as old as cattle farming itself. The iconic image of a cowboy has him on horseback, swinging…a lasso. As cool as that looks, it’s still not as efficient as locking cattle up while they feed. The HL series cattle headlock feeder is designed to do just that.
To create the HL feeder, we partnered with Sturdy Built Manufacturing in Denver, PA, a long-time maker of galvanized dairy equipment. Together, we created a modified version of Farmco’s hay feed wagons, with headlocks built in. With a combination of 1” and 1.9” high yield galvanized tubing, the headlocks are built to handle even the rowdiest animals.
Let’s face it – the less time you need to spend catching cattle, the more time you can spend on projects that will grow your operation’s bottom line. Whether you’re catching cattle for vaccination, tagging, artificial insemination, or another need, the HL cattle headlock feeder might be your new best friend.
| Model | Feed Openings | Wheels | Dimensions | |
|---|---|---|---|---|
| CF516HL | 18 | 15×6 Rims | 57″ x 16′ | |
| CF520HL | 22 | 15×6 Rims | 57″ x 20′ | |
|
CF524HL | 26 | 15×6 Rims | 57″ x 24′ |
| CF710HL | 19 | 15×6 Rims | 84″ x 10′ | |
|
CF720HL | 23 | 15×8 Rims | 84″ x 20′ |
Standard Features
Each cattle headlock feeder we build is made with a combination of 12 gauge steel (on the trough) and high-yield galvanized tubing (on the headlocks). With strategically placed reinforcements and quality welds, these feeders are designed to handle the stress placed on them by large animals. Before they leave the shop, each cattle headlock feeder trough is coated with a two-part polyurethane paint applied electrostatically for even coverage. We want our feeders to be weather resistant for years to come.
In addition, the HL series cattle headlock feeder also comes standard with:
An inverted V divider (on 7’ wide models) and slanted trough sides for consolidating feed scraps and simplifying clean up.
Individual cattle releases for freeing cattle one at a time (shown in locked position).
Individual cattle releases for freeing cattle one at a time (shown in unlocked position).
A single handle release for freeing an entire side of the feeder at once.
Automatic down-cow release for additional safety.
3 width adjustments for variation in animal size.
Swinging end gate with a secure latch, to make tending cattle and cleaning feed scraps as easy as possible.
2 front corner jacks to add extra stability when parked.
A 180-degree turning front dolly for easy handling.
An extendable tongue, which folds up and hooks out of the way during feeding.
4 wheels with 15×6 or 15×8 rims (with valve stem guards) to make moving the feeder as straightforward as possible.
