GB SeriesPortable Grain Bins
A portable bulk feed bin on wheels for storing grain at feeding locations.
What if you didn’t have to haul grain or creep feed from the barn every time you wanted to feed animals in the pasture? That would be a cool idea. And with our portable grain bin design, it’s not just a cool idea. It’s a reality.
We designed our portable grain bins to make feeding in different pastures as easy as possible. Just load the portable bulk feed bin up at the barn or the feed mill and tow it directly to the pasture or feedlot where your animals are. You can leave it parked there as long as you need, protecting your feed from moisture and varmints while keeping it accessible. The grain door on the bottom of the portable grain bin allows you to fill buckets quickly and easily for carrying feed to your bunk feeder or creep feeder.
To put it simply, Farmco’s portable grain bin is designed for efficiency. Save on feed costs by buying in bulk. Reduce losses to rodents and mold by keeping feed protected. Save labor by eliminating extra feed transport trips. A portable bulk feed bin will leave you wondering what you did without it.
| Model | Capacity | Weight Rating | Wheels/Legs | Dimensions | Height | Grain Door Height Off Ground | |
|---|---|---|---|---|---|---|---|

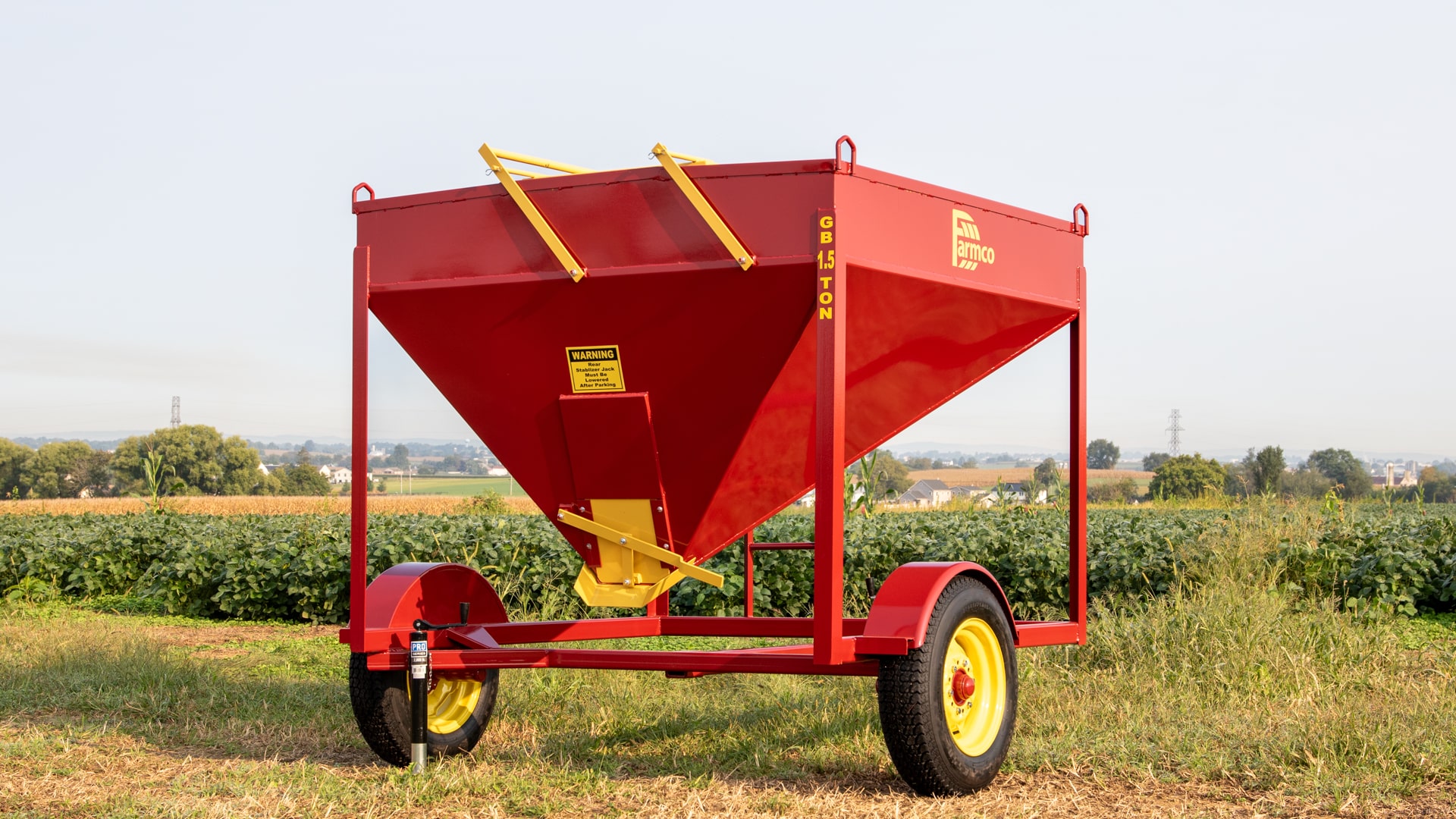

| GB1.5TON | 70 cubic ft./~55 bu. | 3,000 lbs | 2 15″x6″ Wheels (with new trailer tires) | 6’x6′ | 6′ 8″ | 23″ |
| GB3TONL | 155 cubic ft./~110 bu. | 6000 lbs | On Legs | 6’x6′ | 8′ 6″ | 23″ | |
| GB3TON4 | 155 cubic ft./~110 bu. | 6000 lbs | 4 16″ x 8″ Wheels | 6’x6′ | 8′ 6″ | 23″ |
| GB5TONL | 260 cubic ft./~185 bu. | 10,000 lbs | On Legs | 6’x6′ | 11′ 6″ | 23″ |
Standard Features
Each Farmco portable grain bin is constructed from heavy-duty 12 gauge steel, with high-quality welds and carefully placed reinforcements. Our portable grain bins are all coated with a two-part polyurethane paint, applied electrostatically for a consistent finish.
In addition, portable grain bins come standard with:
A front jack and an adjustable hitch to make hook up and transport quick and easy.
A rain-proof metal lid on top of the grain bin to allow for simple loading. The lid handle can be operated from the ground.
A grain door which is easily opened and closed to fill buckets or other containers.
A ladder for easy access to the top of the grain bin.
4 wheels on tandem walking beams for smooth, easy travel over uneven terrain (on GB3TON4 model).
Formed steel legs to create a stationary grain bin (on GB3TONL and GB5TONL models).
