700 DRB Series4-Wheeled 7’ Large Bale Feeder
A 7’-wide cattle hay feeder on wheels, built to feed all types of large bales, chopped feeds, and TMR.
Letting your cattle waste hay is a bad deal. Wasting your time is a bad deal too. The 700 DRB cattle hay feeder wastes less of both.
Let’s talk about hay. If you’re feeding your cattle with hay on the ground, you could be wasting up to 45%. And some designs of hay feeders don’t do much better. Hay feeders like the 700 DRB, on the other hand, are built to keep hay bales in the center of the feeder and encourage cattle to take much smaller bites of hay.
There’s also your time. We’ve found cleaning a lot of hay feeders to be a frustrating, time-wasting process. So, we built the 700 DRB with the option of EZ Clean-Out racks, which flip out of the way during cleaning. It takes less than 2 minutes to shovel or sweep out a cattle hay feeder with EZ Clean-Out racks. No joke.
| Model | Feed Openings | Wheels/Legs | Dimensions | |
|---|---|---|---|---|
|
CF710DRB | 20 | 15×8 Rims | 84″ x 10′ |
| CF716DRB | 28 | 15×8 Rims | 84″ x 16′ | |
|
CF720DRB | 36 | 15×8 Rims | 84″ x 20′ |
| CF724DRB | 42 | 15×8 Rims | 84″ x 24′ | |
| CF730DRB | 52 | 15×8 Rims | 84″ x 30′ |
Standard Features
Each hay feeder built by Farmco is made from heavy-duty 12 gauge steel with strategically placed reinforcements, all held together with high-quality welds to ensure years of use in real farming conditions. Every hay feeder we manufacture is coated with a two-part polyurethane paint, applied electrostatically to guarantee smooth, even coverage.
In addition, the 700 DRB cattle hay feeder comes standard with:
Slanted trough sides and an inverted V divider that helps keep feed scraps away from the sides, simplifying the cleaning process.

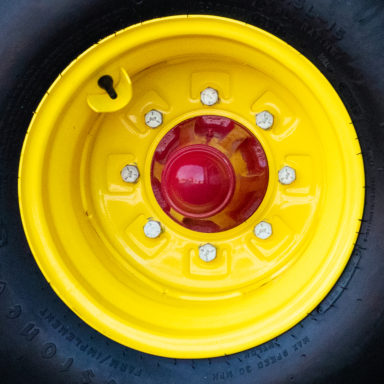

4 wheels with 15”x8” rims (with valve stem guards) to make transportation between feeding locations as easy as possible. (For a skid feet option, see our 700 SRB round bale feeder.)
A 180-degree turning front dolly for maximum maneuverability.
An extendable tongue, which can be folded up and hooked out of the way during feeding.
A rear entry gate, which flips down to make bale loading and cleaning as easy as possible.
A tough, spring-loaded gate latch to keep cattle out of the feeder.
Options
The 700 DRB cattle hay feeder is also available with several additional options, including:

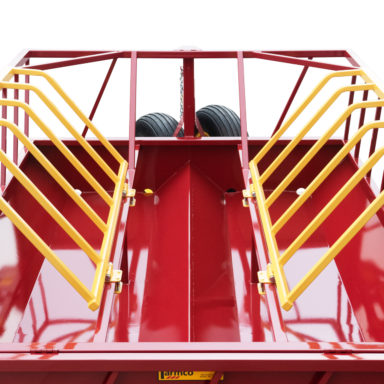

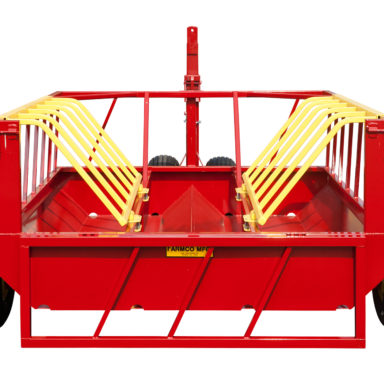

EZ Clean-Out racks, which help to center hay bales during feeding and flip up out of the way when it’s time to clean out scraps (shown in place).

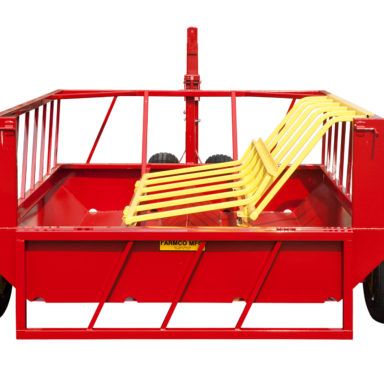

EZ Clean-Out racks, which help to center hay bales during feeding and flip up out of the way when it’s time to clean out scraps (shown flipped).
Galvanized sheet feeding inserts, made to fasten to the EZ Clean-Out racks for feeding green chop or silage.
A roof kit (available only on 10’ models) to keep hay drier and preserve feed quality.
