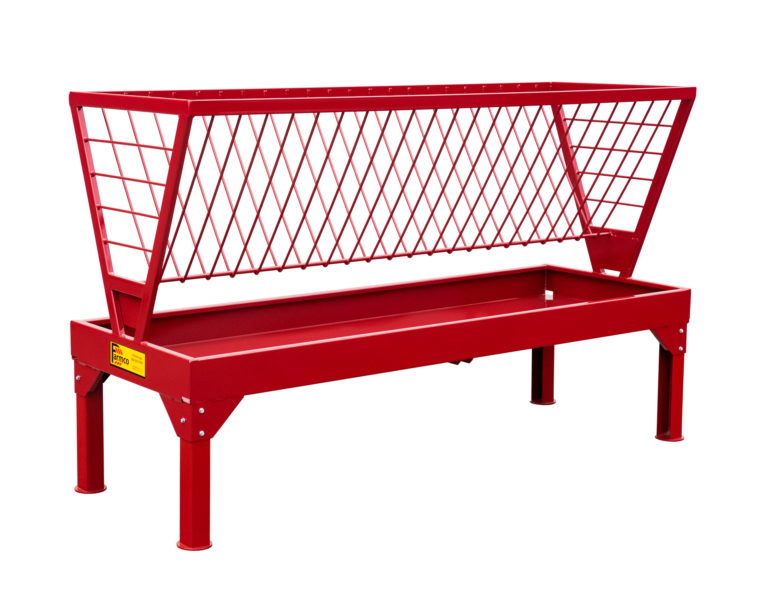

32 SeriesGrain / Small Square Bale Feeder
A 32”-wide bunk feeder with a hay rack.
What if there was a feeder that could do two things equally well? With the 32 series feeder, there is. We doubled up and combined a small square bale feeder with a bunk-style grain feeder. The result is a square bale feeder that allows you to feed hay, grain, or both simultaneously. It’s called multitasking.
For the square bale feeder rack, we used 3/8” steel rods attached to a frame of 1/8” steel rectangle tubing. This hay rack is designed to be filled – time after time after time. The grain trough beneath the square bale feeder is 32” wide, built from 12-gauge steel, and stands 25″ from the ground. (For a shorter version, see our goat/sheep feeder.) Drain holes in each corner keep the feeder free of excess moisture; less moisture = more years of use.
One benefit of combining a bunk feeder with a hay rack is that it can help to cut down on hay waste. Much of the loose hay that is pulled from the square bale feeder is caught in the grain trough. Making sure your animals clean up feed scraps means healthier animals with a smaller feed bill, and that’s a win for everyone.
| Model | Capacity | Trough Height | Dimensions | Weight | |
|---|---|---|---|---|---|
 | CF4832R19 | 1-2 small square bales | 25″ | 32″x48″ | 210 lbs |
 | CF832R19 | 2-4 small square bales | 25″ | 32″x96″ | 325 lbs |
Standard Features
Each Farmco bunk feeder with a hay rack is made from 12 gauge steel with top-quality welds and carefully placed reinforcements. Once assembled, each square bale feeder is painted with a two-part polyurethane paint, applied electrostatically for a consistent finish. When our square bale feeders arrive on a farm, we expect them to be there for a long time.
Farmco square bale feeders come standard with:
1/8” steel rectangle tubing frame, designed to hold up to decades of farm use.
3/8” steel rod hay basket to handle a full load of bales.
32” wide 12-gauge steel trough in lengths up to 8’ for feeding grain and catching loose hay.

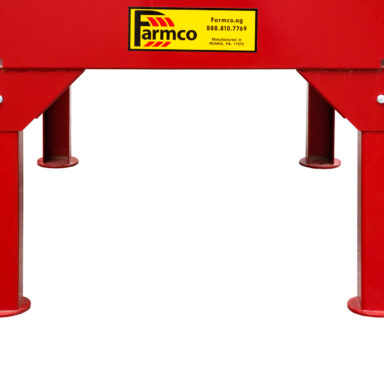

19” formed steel legs to support everything. (For a square bale feeder with shorter legs, check out our small animal feeder.)
