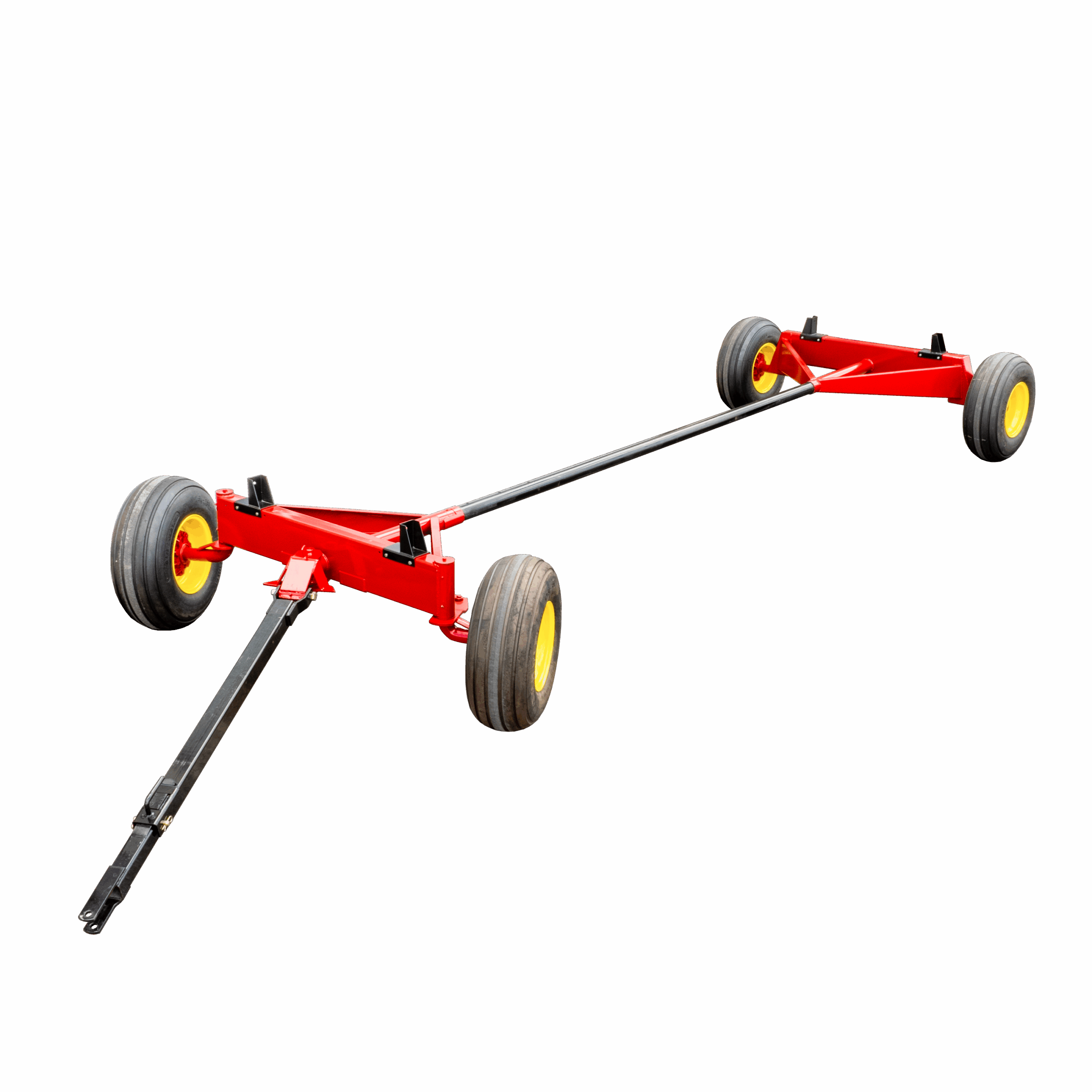

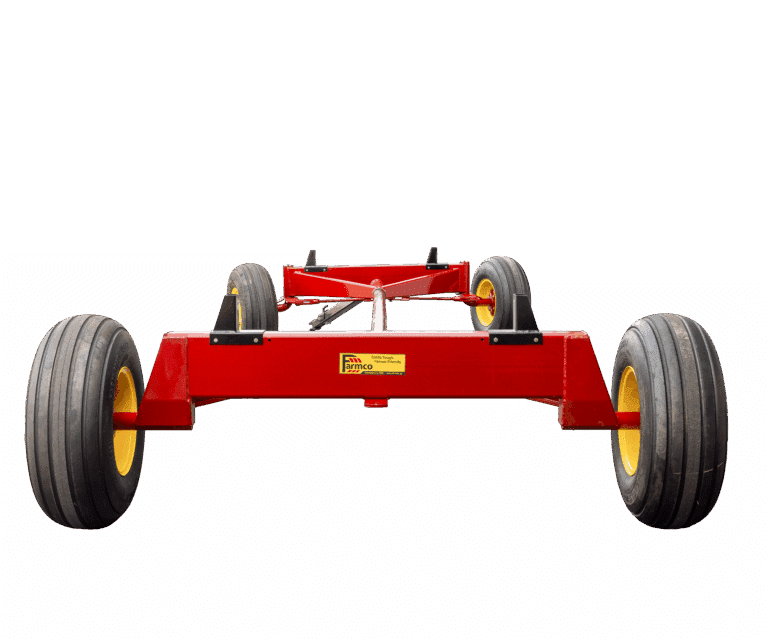

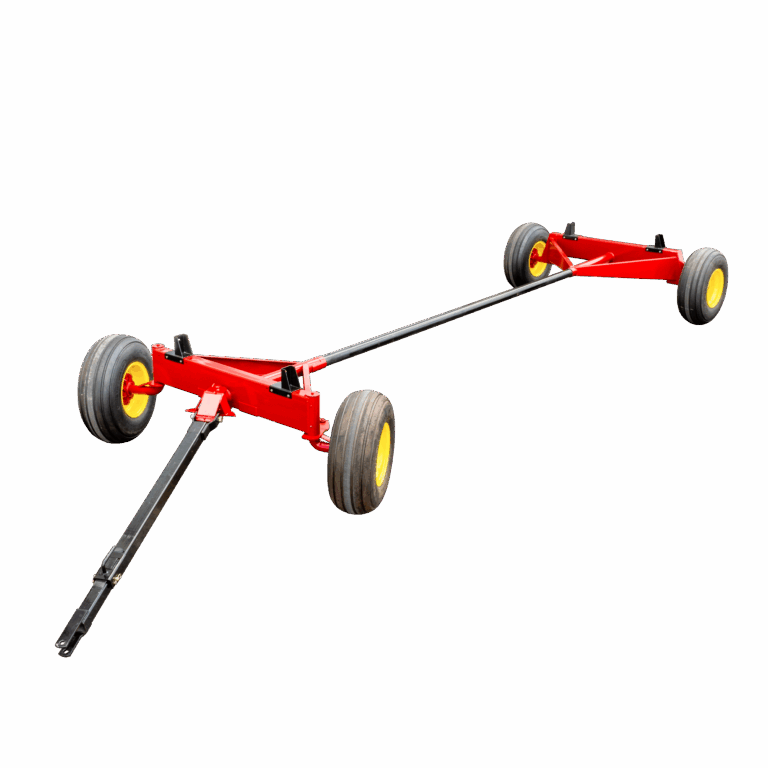

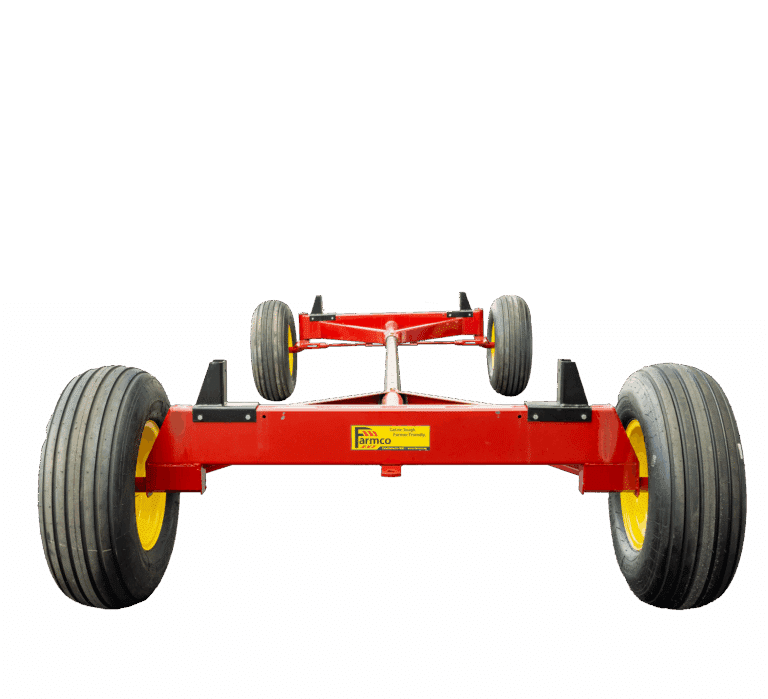

TuffGear

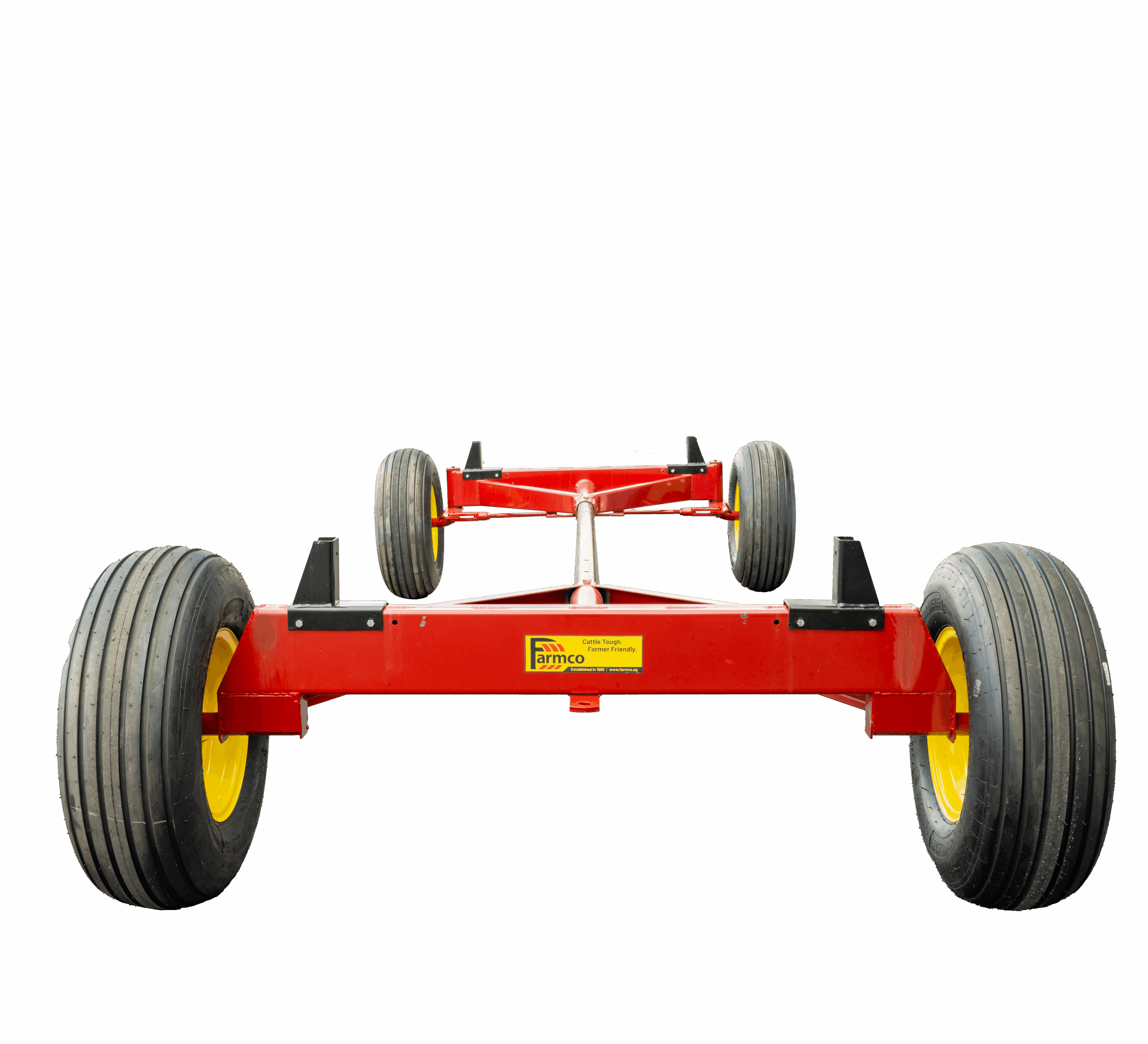

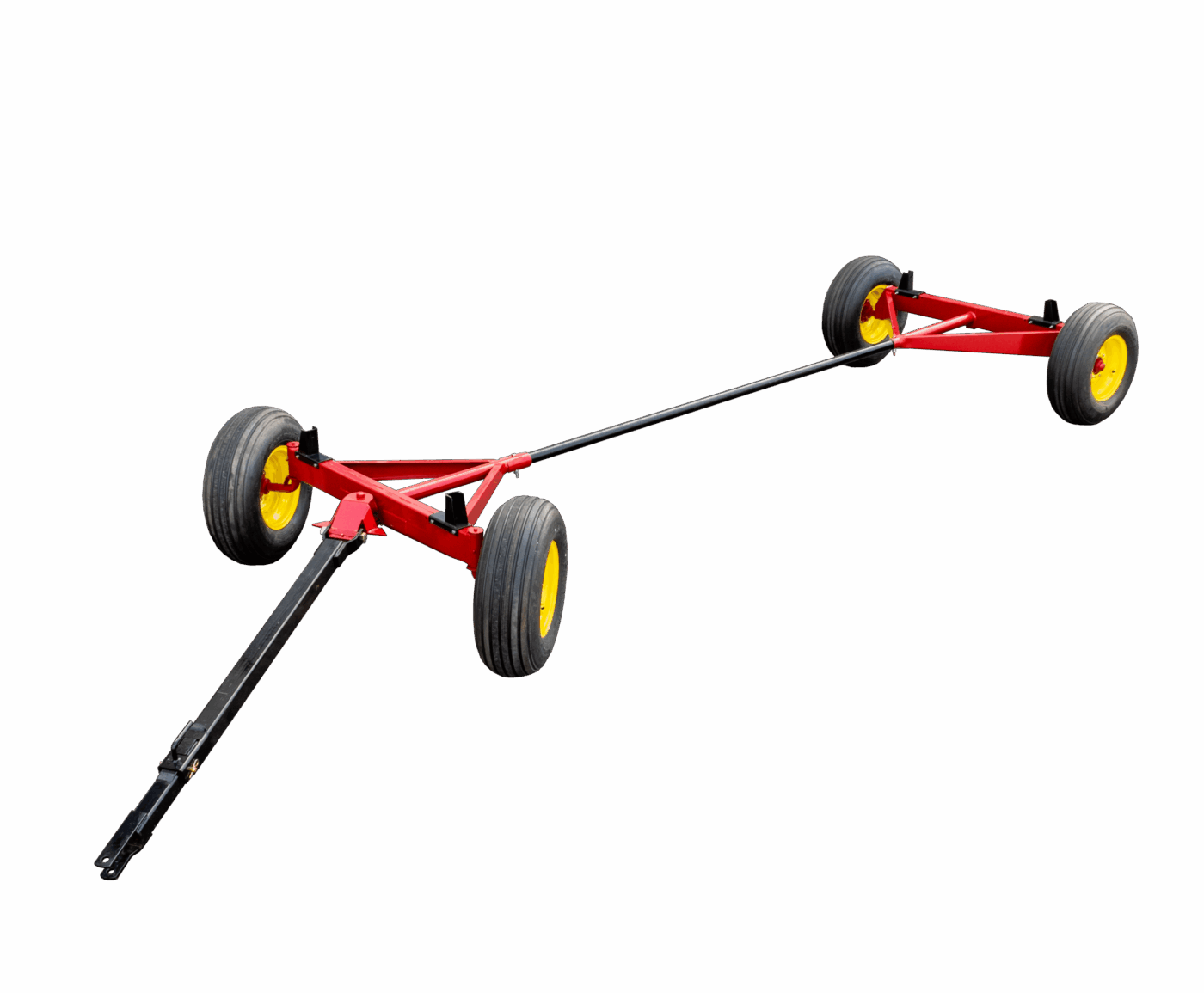

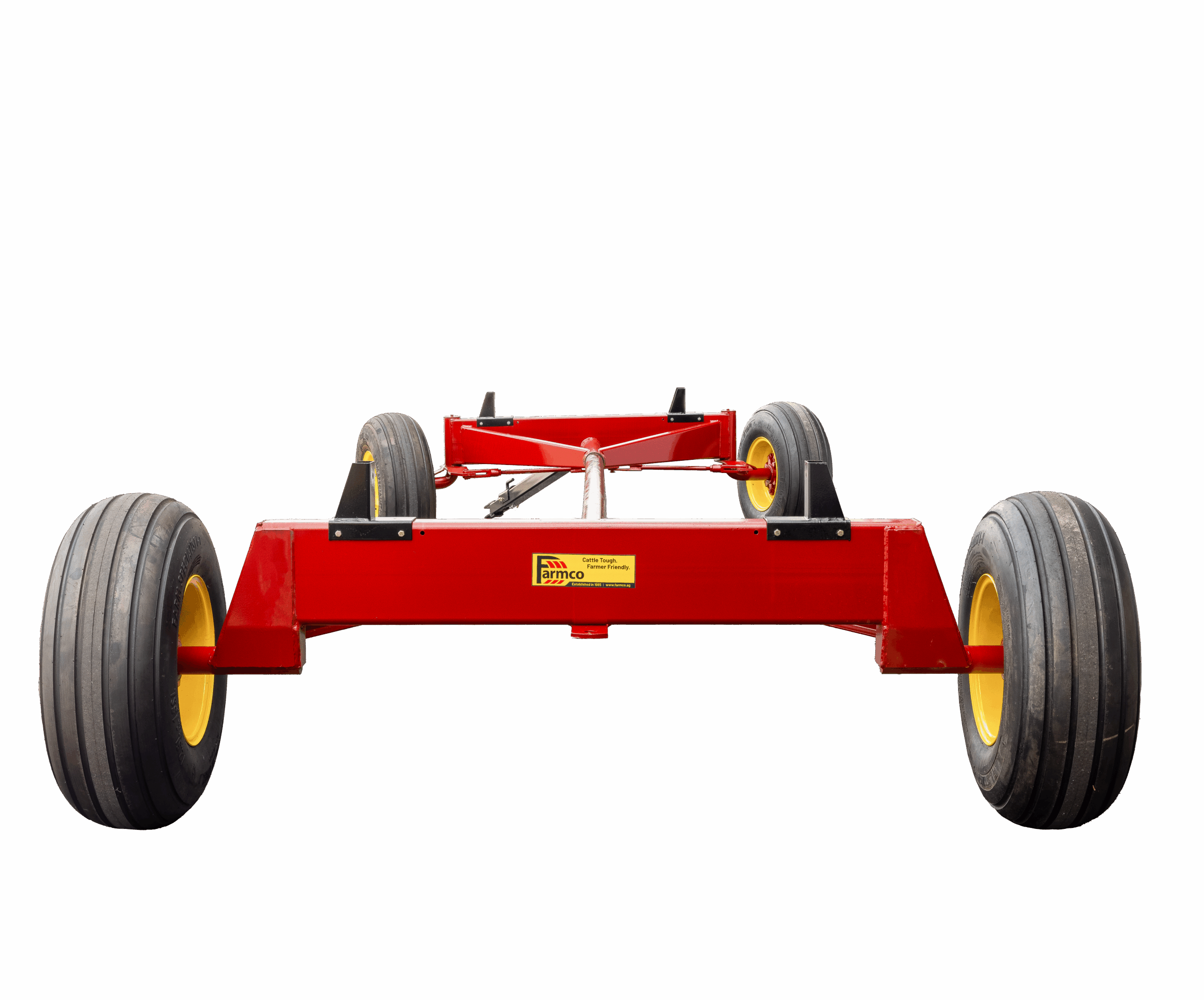

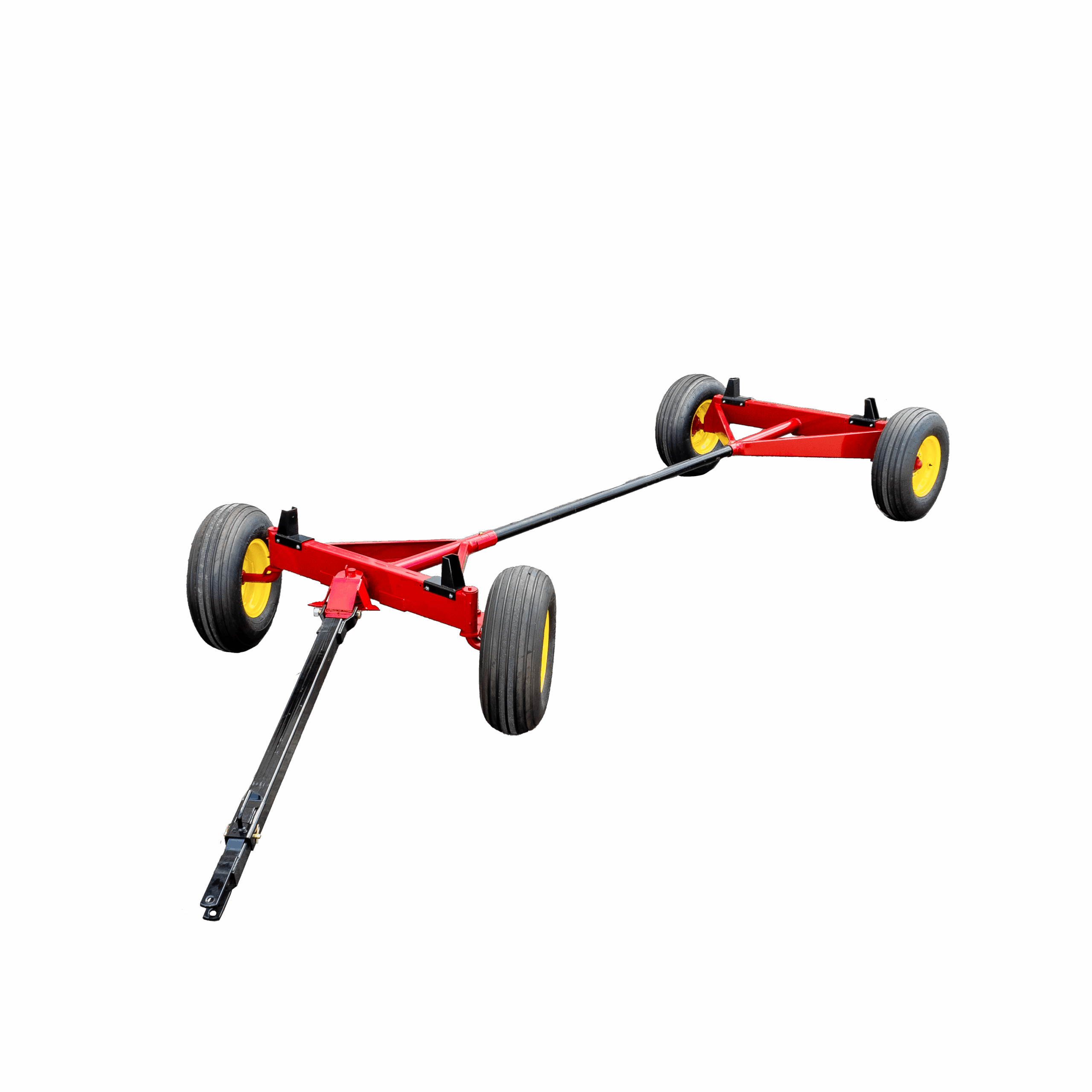

Extra tuff wagon gears with single or tandem rear axles. Rated for loads from 16,000 lbs. to 24,000 lbs.
Built to Haul. Engineered to Last.
Farm work doesn’t take it easy on your gear. That’s why we built the TuffGear running gear system to take the hits—and keep hauling.
Rated up to 24,000 lbs, TuffGear is overbuilt where it counts. It comes standard with a 98″ reach pole made from Schedule 40 pipe (also available in Schedule 80 or 100″ for longer loads over 20′). It’s the kind of durability you’ll notice when you’re still rolling after a few more “last bales.”
The chassis design reduces stress and bounce across uneven terrain. And if you want an even smoother pull in the field, step up to the FlexGear. On the road, TuffGear holds a clean line and tracks without wandering—because downtime isn’t part of the job description.
If you’re looking for a no-nonsense gear system that keeps your operation moving, start here. TuffGear. Because good equipment pulls its weight.

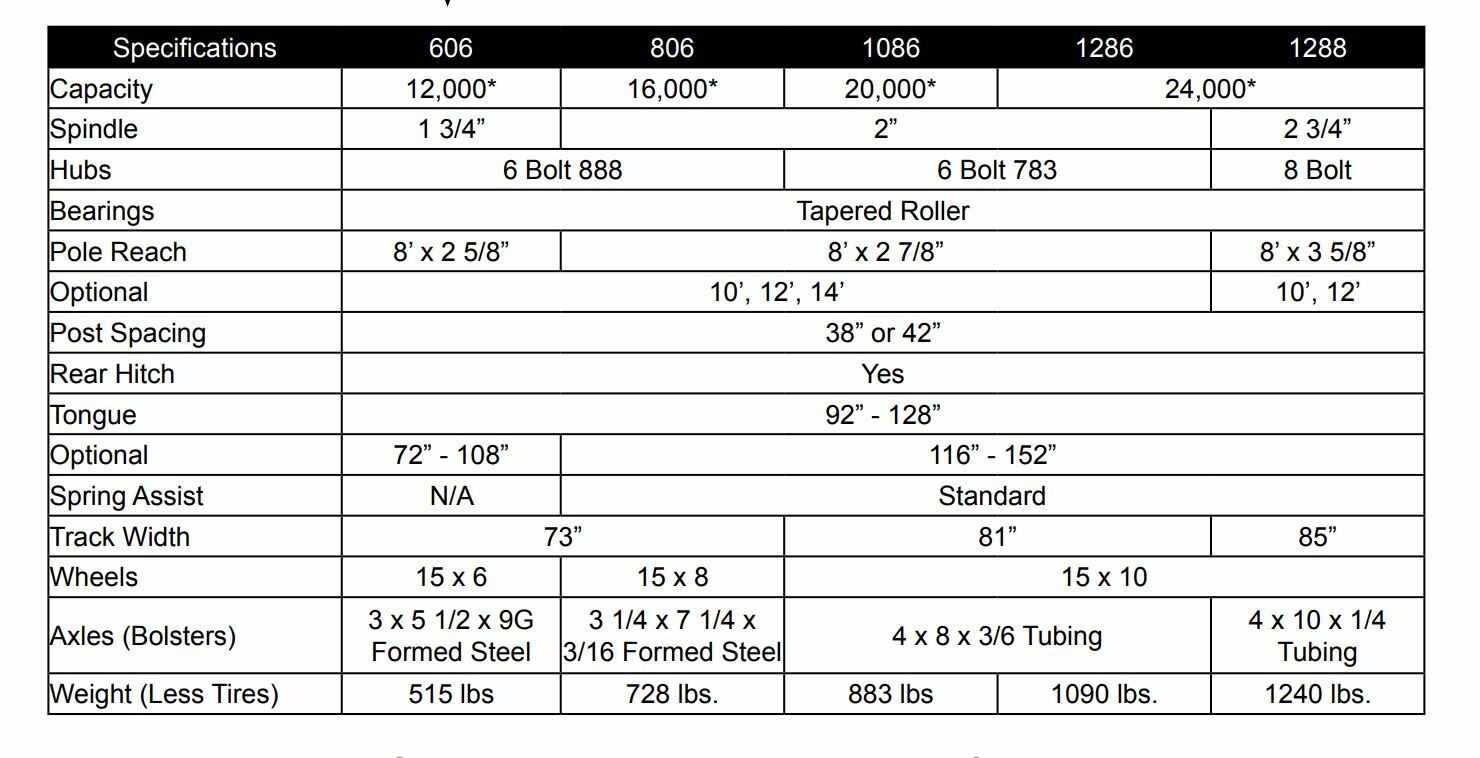

TuffGear Available Sizes
Model
Weight
Hubs
Tread Width
Dimensions
Fieldwork Doesn’t Go Easy On Equipment—But Neither Do We
TuffGear doesn’t flinch under pressure—because we don’t cut corners in the shop. Every gear is constructed from high-strength A-36 steel, precision-welded, and finished with a weather-tough, two-part polyurethane coating applied electrostatically for maximum durability.
This isn’t paint and polish. It’s protection that holds up year after year, season after season. Because when you depend on your gear to work as hard as you do, build quality isn’t optional.
TuffGear includes standard features like:
Extendable tongue for easy hookup and varying towing lengths.

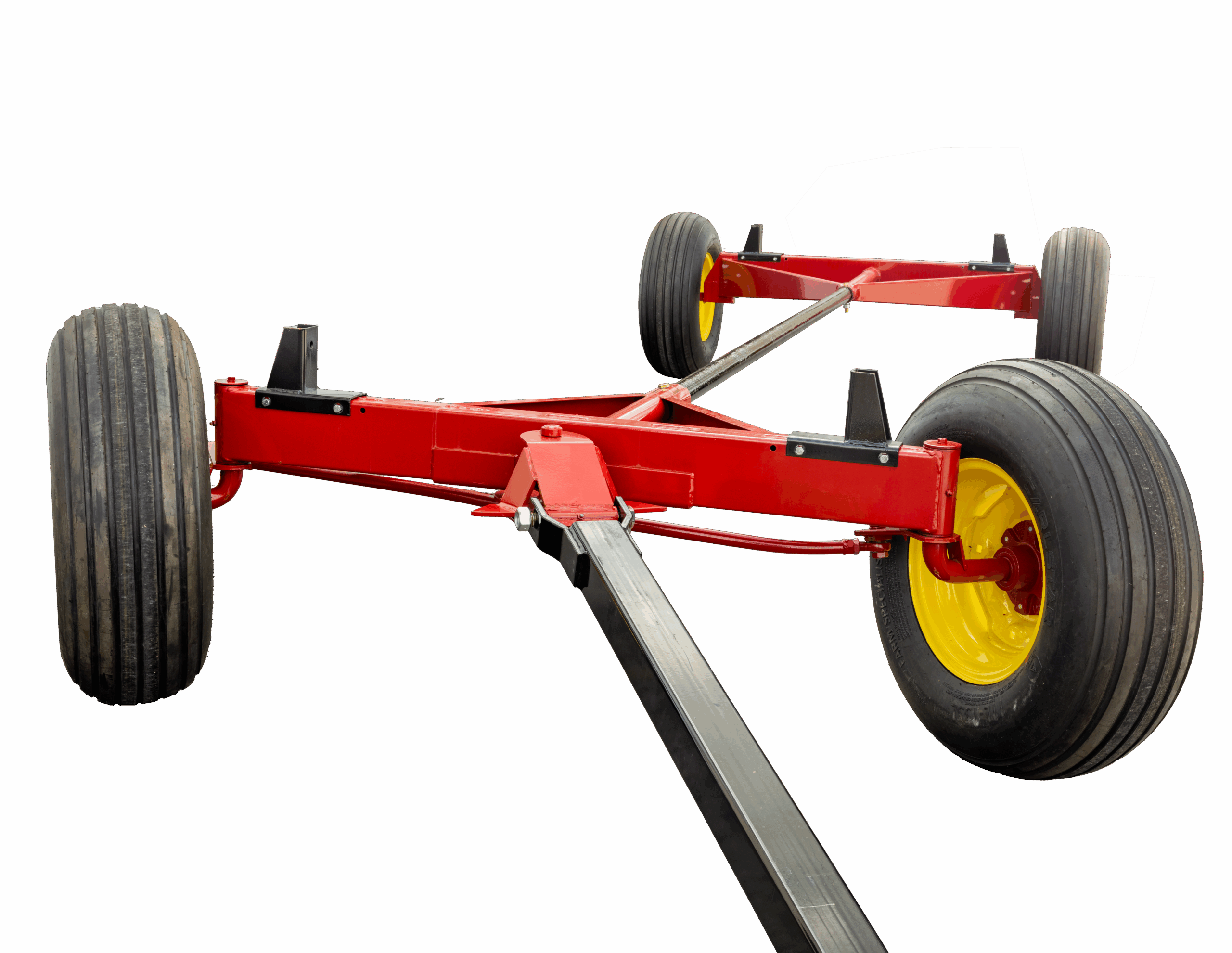

Automotive-style front steering assembly for a straight ride.

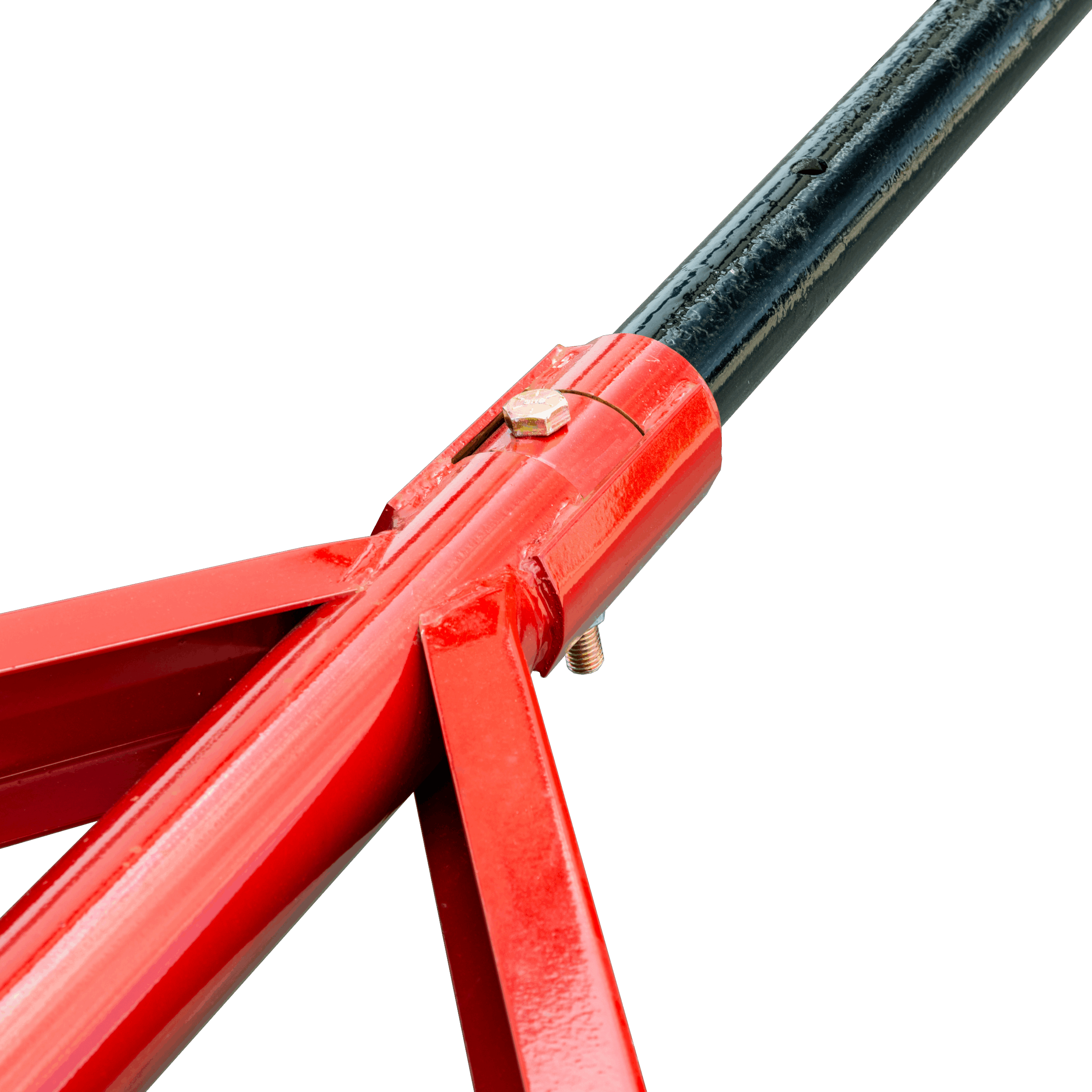

2-1/2” reach pole with either schedule 40 or schedule 80 pipe for hauling heavy loads.
Heavy-duty mounting brackets for securely attaching wagon body.
Heavy-duty axle cross members for handling loads up to 24,000 lbs.
Heavy-duty connecting bolt with stops on either side to ensure you can’t over turn.
15×8 or 15×10 rims with valve stem guards.
TuffGear Options
The TuffGear is also available with:
100” reach pole for applications 20’ or longer. (For double-coupling pole design, check out the FlexGear.)
Several tire sizes, including 11L15 – 8 ply and 12.5L15 – 10 ply.
